Specs

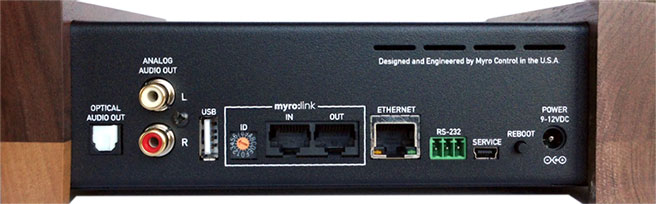

myro_air_back



Features:

- Designed, engineered, assembled and made in the U.S.A. using domestic and foreign parts.
- Apple Certified AirPlay Streamer using Apple Lossless Codec
- uPnP/DLNA Media Renderer
- Wolfson WM8741 High-end DAC (Digital-Analog-Converter) via RCA outputs
- Simultaneous digital output via SP/DIF using Wolfson WM8804 transmitter
- Plug-and-Play functionality with Russound RNET based controllers
- Dead simple RS-232 protocol that can easily interface and be controlled by any home automation control systems (Crestron/Control4/AMX/RTI) with RS-232 control abilities Crestron Control module available.
- 2-way transport control (play/pause/next/previous) available to RS-232 and Myro:Link
- Full metadata (album/artist/title) support available to RS-232 and Myro:Link
- Firmware updatable
- Configuration done via onboard web page
- USB Port can stream audio and charge iOS device (Apple Certified for iPhone, iPod, iPad)



Inputs/Outputs:

- 12v 2A DC Power Supply
- RS-232 serial control port (same connector as Crestron)
- Myro:Link 2-port connector (interfaces with Russound RNET controllers)
- Myro:Link ID selector (RNET ID equivalent)
- Mini USB port for service/debug console
- 10/100mb ethernet port
- Gold plated RCA jacks for analog output
- DAC output 2.0Vrms @ 0db (for Russound controllers set source volume trim to 0db)
- SP/DIF Optical output
